QSFP28

Product Features

l  Compliant with 100GBASE-ZR4

l  Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4

l  LAN WDM EML laser and PIN receiver with SOA

l  Up to 80km reach for G.652 SMF

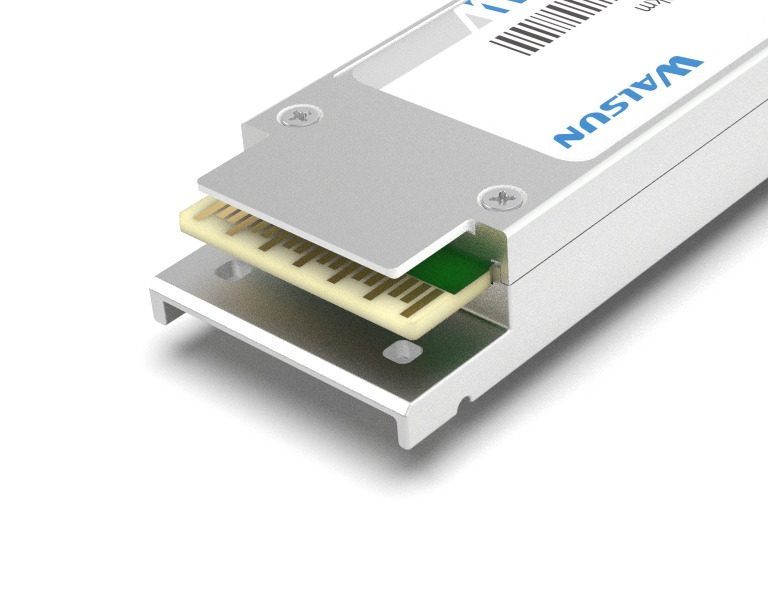

l  Hot pluggable 38 pin electrical interface

l  QSFP28 MSA compliant

l  Duplex LC optical receptacle

l  RoHS-10 compliant and lead-free

l  Single +3.3V power supply

l  Maximum power consumption 6.5W

l  All-metal housing for superior EMI performance

l  Case operating temperature : 0°C to +70°C/ -40°C to +85°C


分享+
订购信息
产品型号传输速率
(Gb/s)
波长
(nm)
距离
(Km)
激光器发射光功率
(dBm)
接收器接收灵敏度
(dBm)
温度
(℃)
规格书
QSFP28 SR4100 850 0.1 VCSEL -8.4~2.4 PIN < -10.3 0~70
QSFP28 CWDM4100 CWDM 2 DFB -6.5~2.5 PIN < -10 0~70
