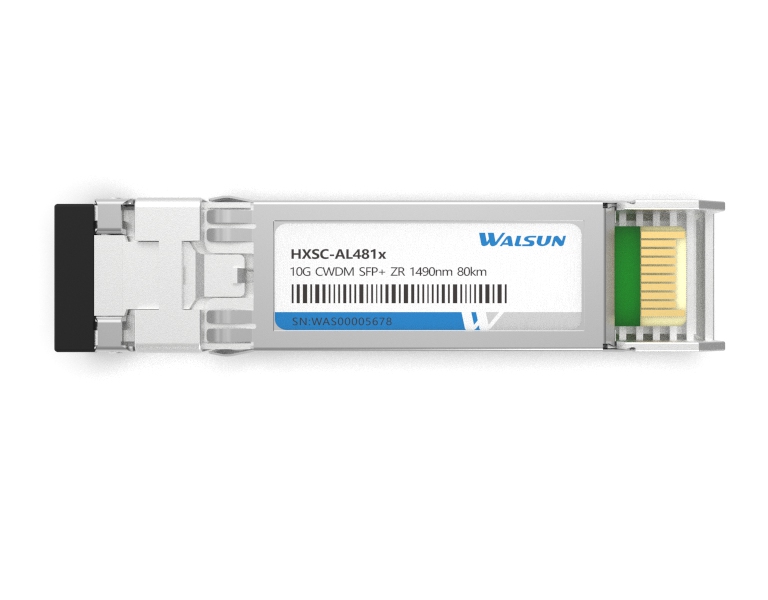

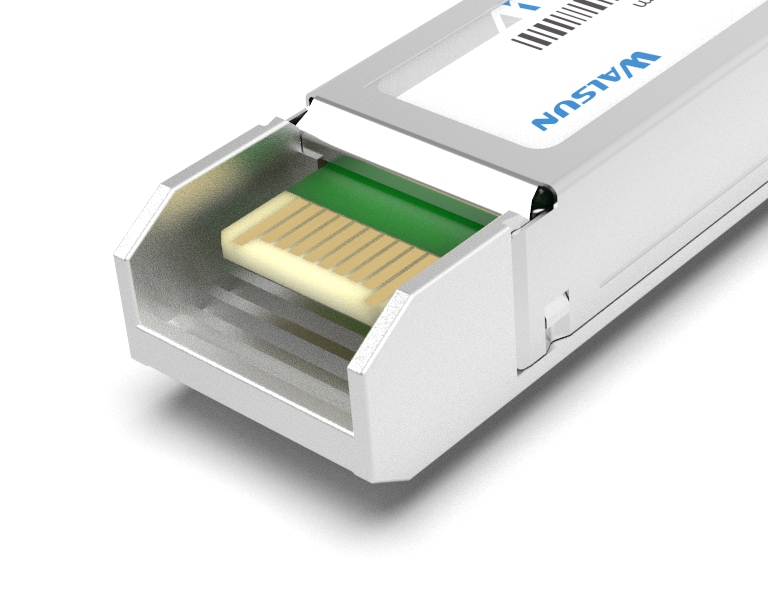

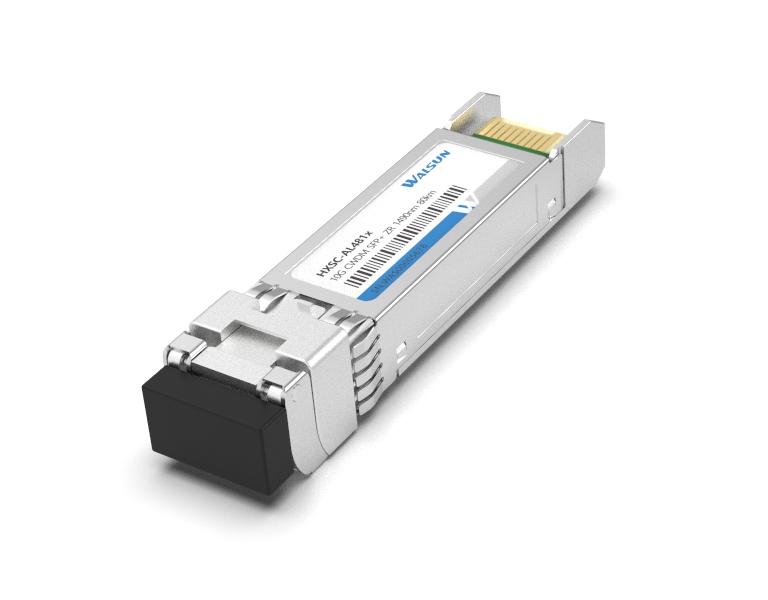

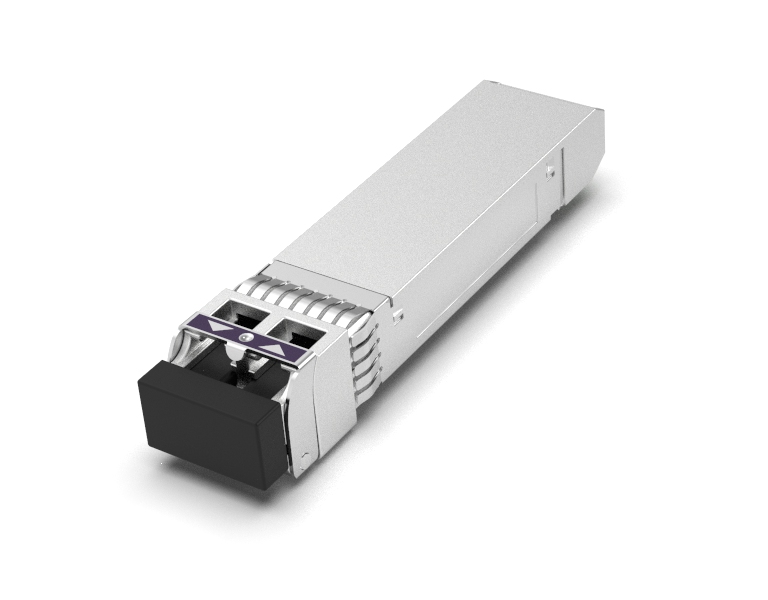

CWDM

Product Features

l  Up to 11.3Gb/s data links

l  CWDM EML transmitter and APD receiver

l  Up to 80km on 9/125µm SMF

l  Hot-pluggable SFP+ footprint

l  Duplex LC/UPC type pluggable optical interface

l  RoHS-10 compliant and lead-free

l  Support Digital Diagnostic interface

l  Single +3.3V power supply

l  Compliant with SFF+MSA and SFF-8472

l  Metal enclosure, for lower EMI

l  Meet ESD requirements, resist 8KV direct contact voltage

l  Case operating temperature : 0°C to +70°C/ -40°C to +85°C


分享+
订购信息
产品型号传输速率
(Gb/s)
波长
(nm)
距离
(Km)
激光器发射光功率
(dBm)
接收器接收灵敏度
(dBm)
温度
(℃)
规格书
CWDM LR10 1270-1610 10 DFB -6~-0.5 PIN <-14.4 0~70/-40~85
CWDM ER10 1470-1610 40 EML -1.0~3.0 PIN <-15.8 0~70/-40~85
CWDM ZR10 1470-1610 80 EML 0~5.0 APD < -23.0 0~70/-40~85
CWDM ZR+10 1470-1610 100 EML 1.0~6.0 APD < -25 0~70/-40~85
